Energy Storage Converters

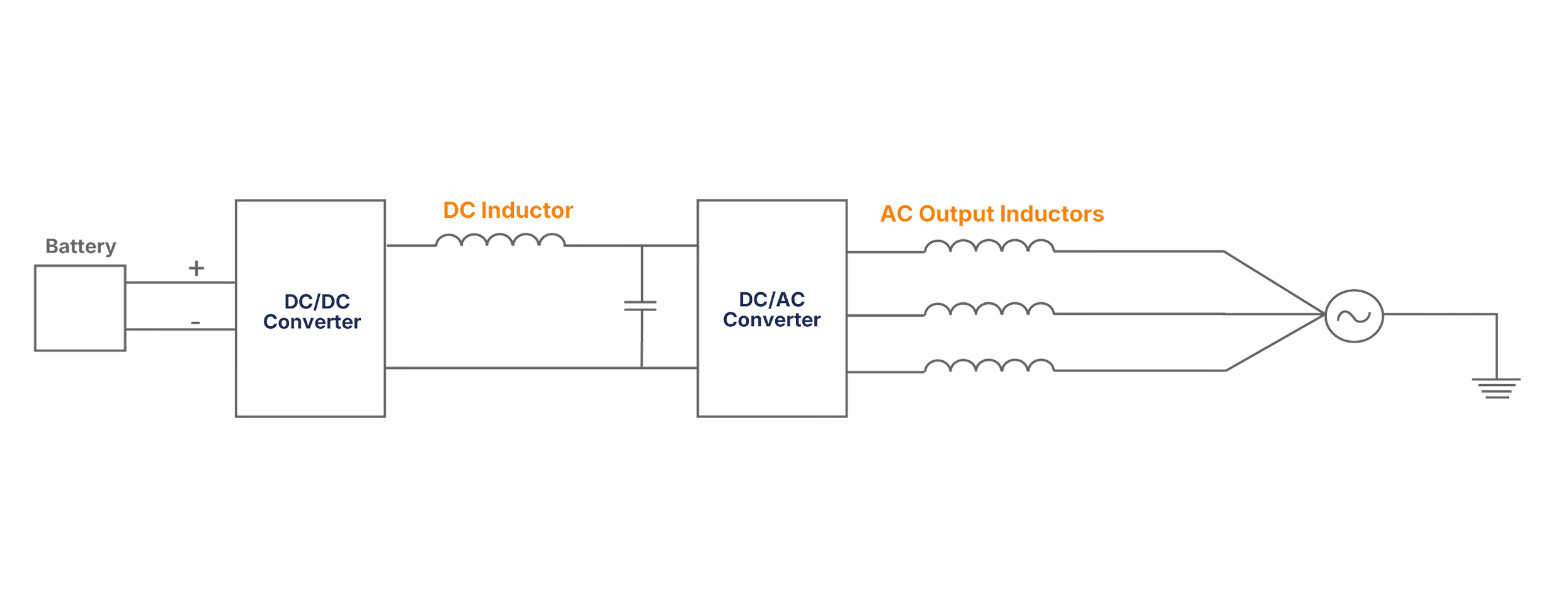

An Energy Storage Converter is a crucial component in energy storage systems. It plays a vital role in managing the flow of energy between Batteries and the Grid.

An inductor is an electrical component that stores energy in a magnetic field when electric current passes through it. Therefore, inductors designed for other market segments can be customized for the demands of the energy storage market segment because the electrical requirements from one market segment to another are similar.

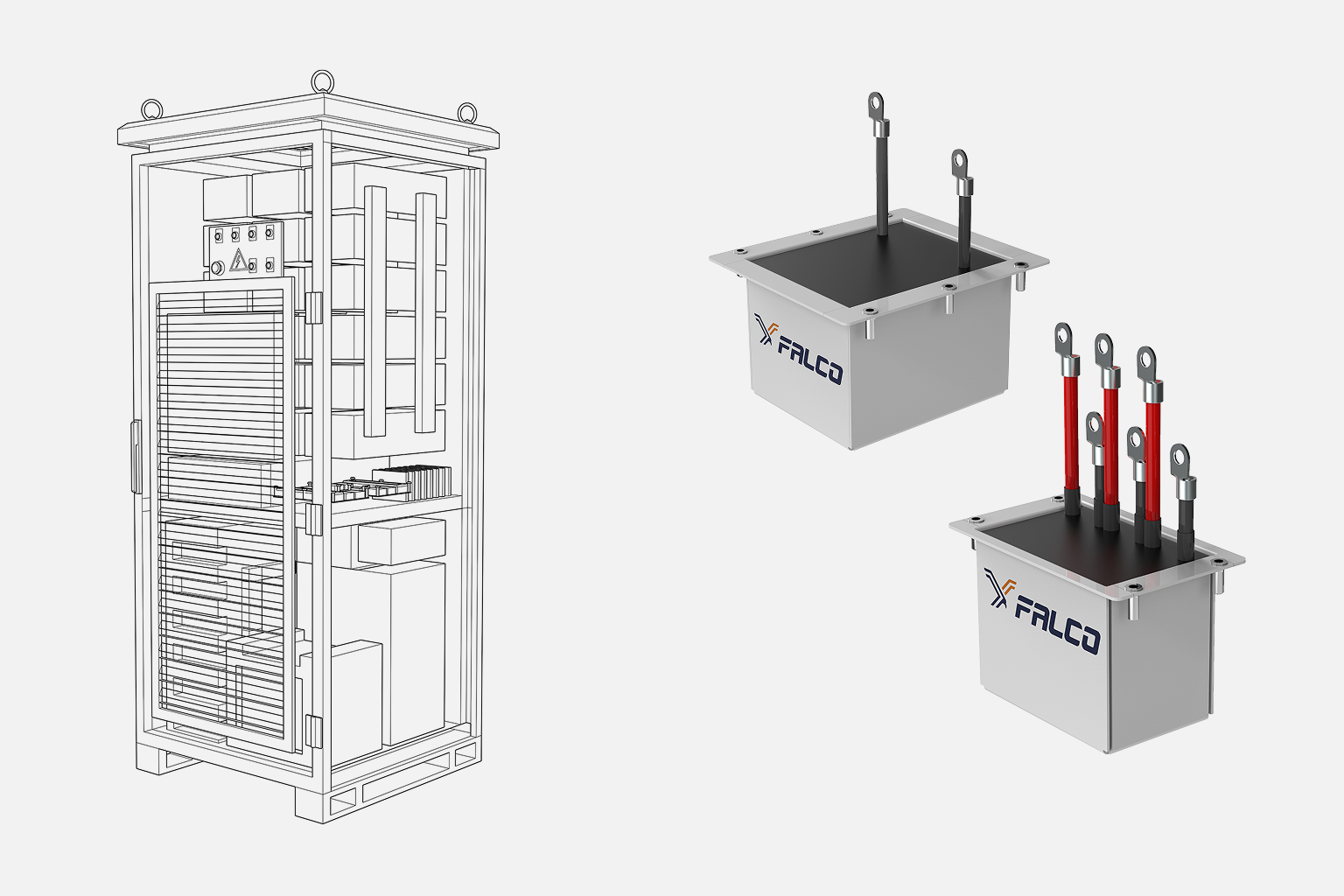

Two examples of Falco products designed for Energy Storage Converters are shown here below: DC Inductor and 3 Phase Output Choke.

PRODUCTS

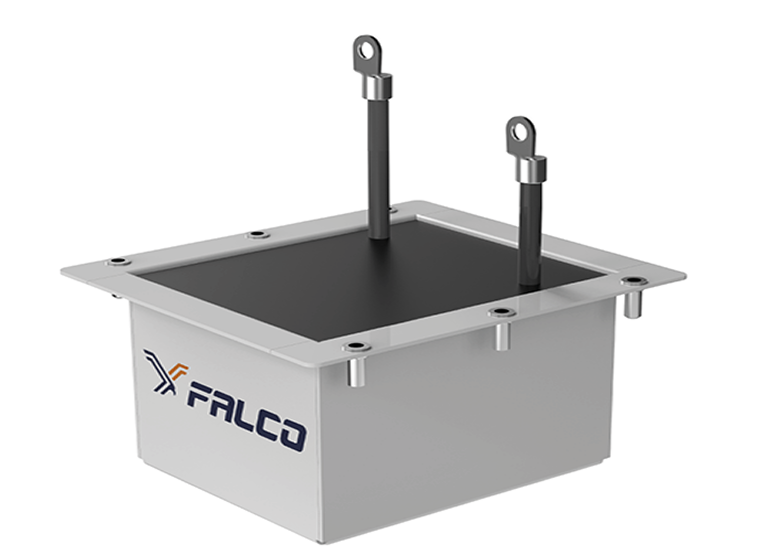

DC INDUCTOR

CC4W01

Features

L = 170 uH @@150A
DCR = 3 mOhm @@25C
Edge Wound Copper Coil (12mm x 2mm)
Amorphous material core
Encapsulation with epoxy

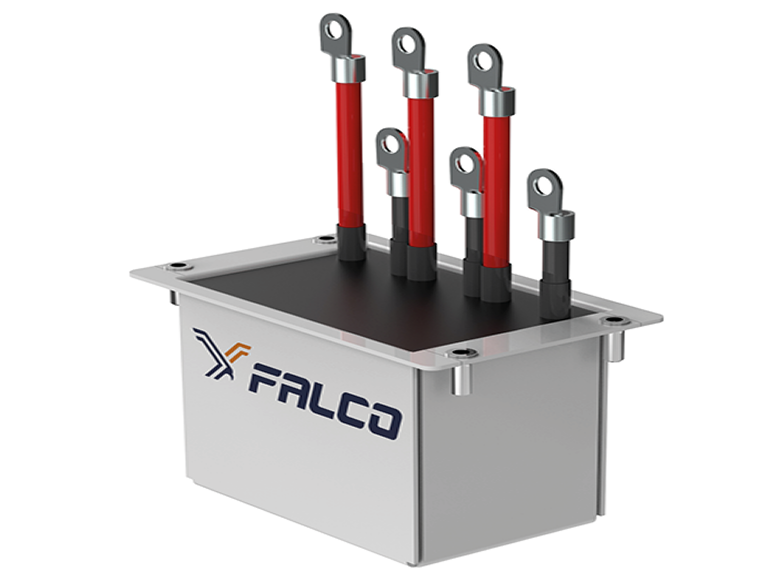

3-PHASE OUTPUT CHOKE

L12W01

Features

L = 7.5uH @@150A
DCR = 0.64 mOhm @@25C
Edge Wound Conductor Coil: Copper rectangular section (3mm x 8mm)
GO Silicon Steel material core
Encapsulation with epoxy

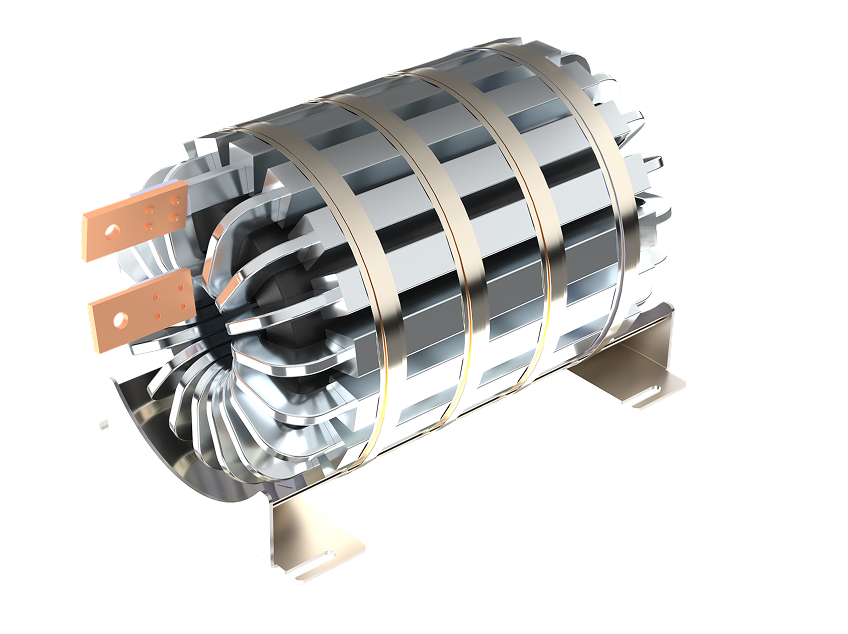

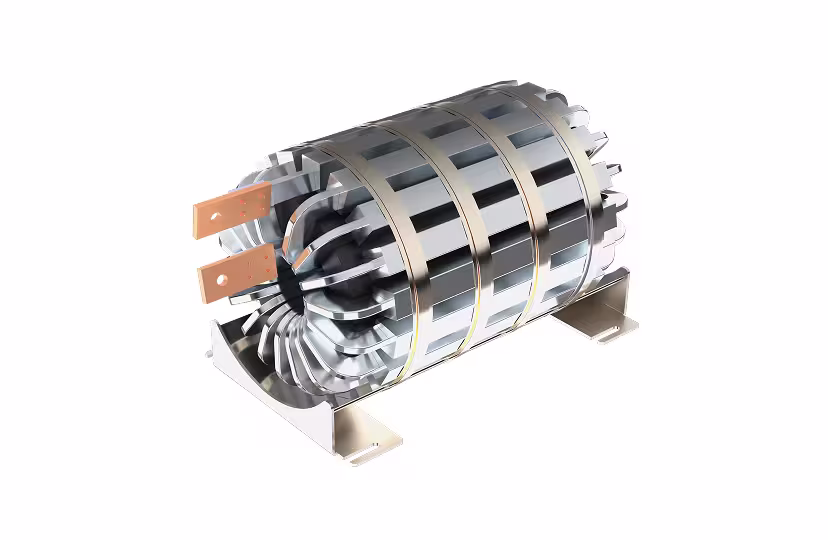

AC OUTPUT INDUCTOR

T65W02

Features

L = 60uH @@900A
DCR = 0.98 mOhm @@25C
Edge Wound Aluminum coil (rectangular 20mm x 10mm)
Powder Alloy core
Class H UL Insulation System
