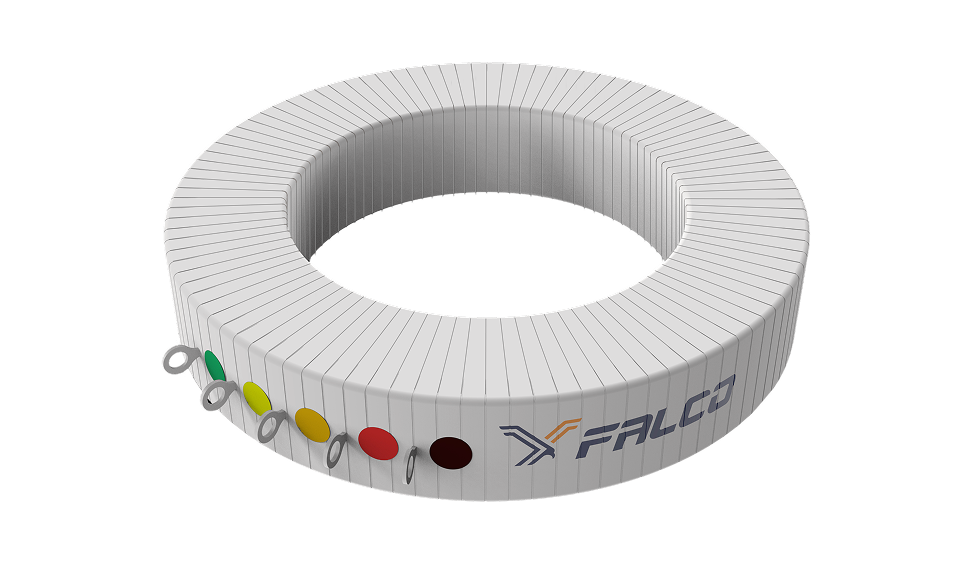

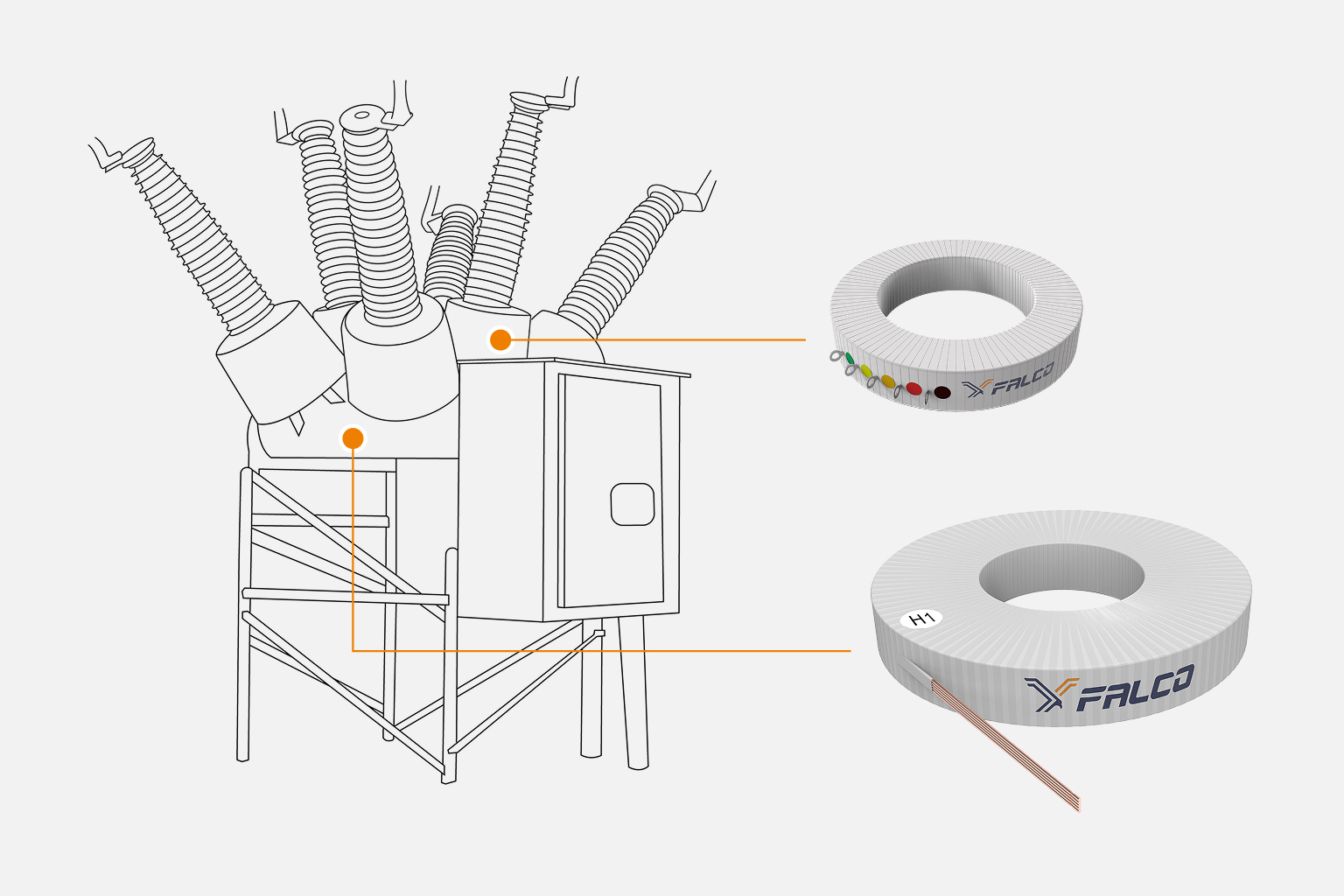

BUSHING CURRENT TRANSFORMER

ICTW03

Features

• Primary Current: 50 to 5000Amp
• Secondary Current: 5A Max
• Application: Dry or Oil immersed
• Relaying Class: C1200 Max
• PX Class Available per IEC 61869
• Metering Class: 0.15S @@45VA for ratios above 600:5A
• Rating Factor: 2.0 @@ 55°C
• Voltage Class: 600-720V
• Frequency: 50-60Hz
• Applicable standard: IEEE C57.13, IEC 61869
• Inner Diameter: 3.0” [76mm] to 25” [635mm]
• Outer Diameter: 4.0” [100mm] to 32” [813mm]
• Electrical Insulation System: Class A (105C) to Class F (155C)
• Steel serialized nameplates available
