Motor Inverter Drives

Motor Inverter Drives are widely used across various industries to control the speed and torque of AC electric motors.

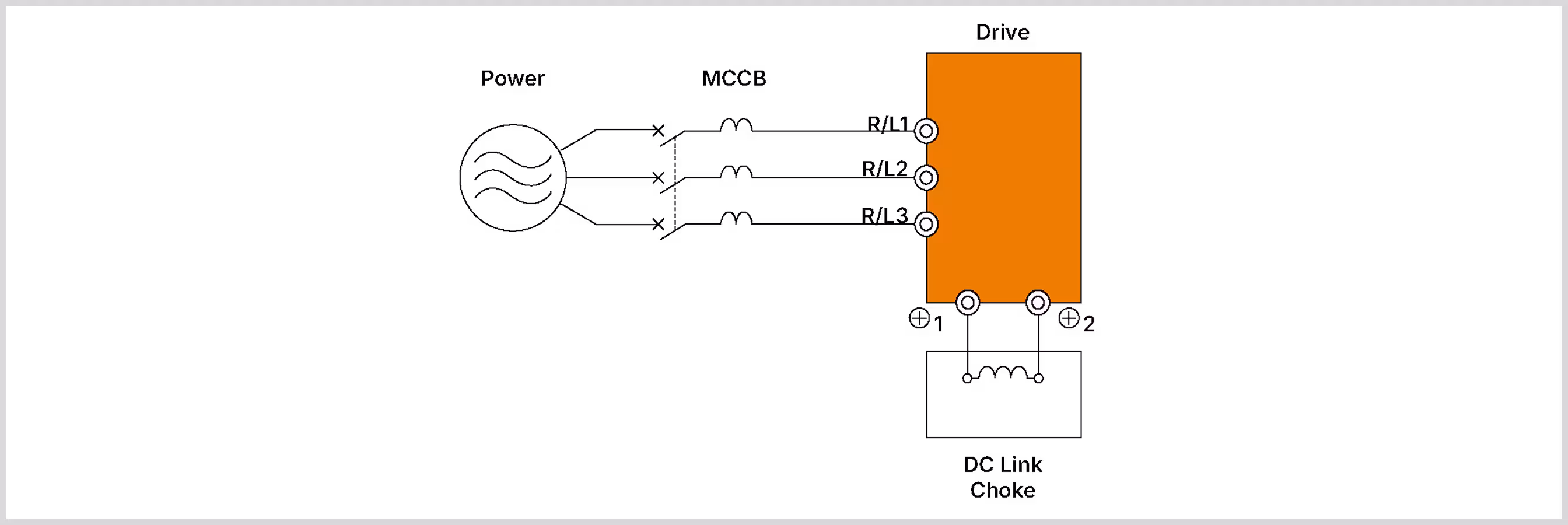

Above is the DC Link Choke connected to the DC bus terminals of the 3-Phase Motor Drive. Switching frequencies less than 5kHz allow the use of a silicon steel core.

PRODUCTS

DC LINK CHOKE

L96W01

Features

L = 0.200mH
Rated Current = 180A
DCR = 2.3mOhm @@25C
Edge Wound Aluminum coil (10mm x 5mm)
Silicon Steel Core

FALCO ELECTRONICS
