EV DC Battery Chargers

We use our decades of experience to support customers in the development of their EV DC Fast Chargers.

Falco designs and produces General purpose CTs, High Accuracy CTs, DC Immune CTs, High Frequency Transformers, Common and Differential Mode Chokes and PFC Inductors for Level 1, Level 2, Level 3 EV Chargers.

PRODUCTS

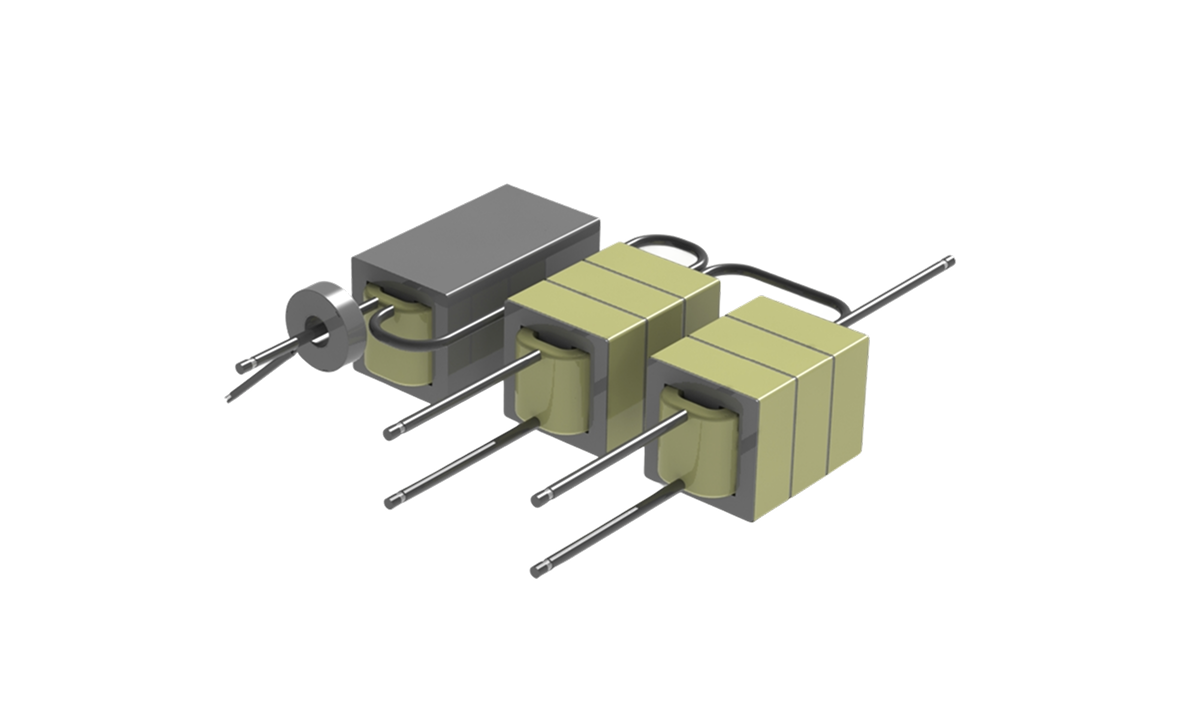

TRANFORMER + RESONANT INDUCTOR + CT

PMAW01

Features

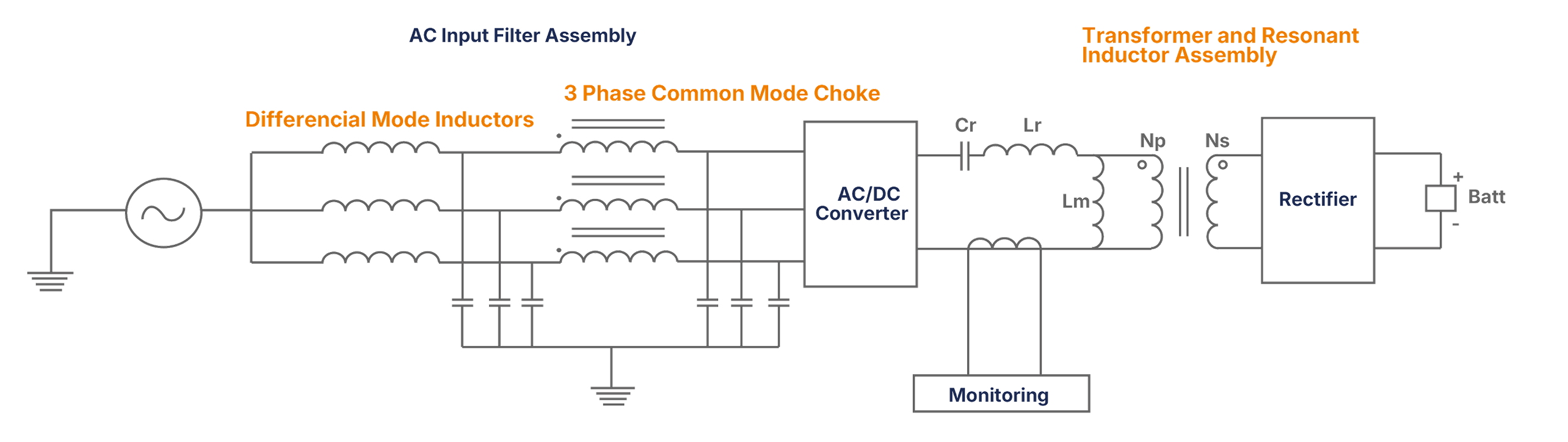

This topology uses the leakage inductance of the transformer combined with the inductance of the resonant inductor to achieve the required system performance. The CT is used to monitor the current flow.

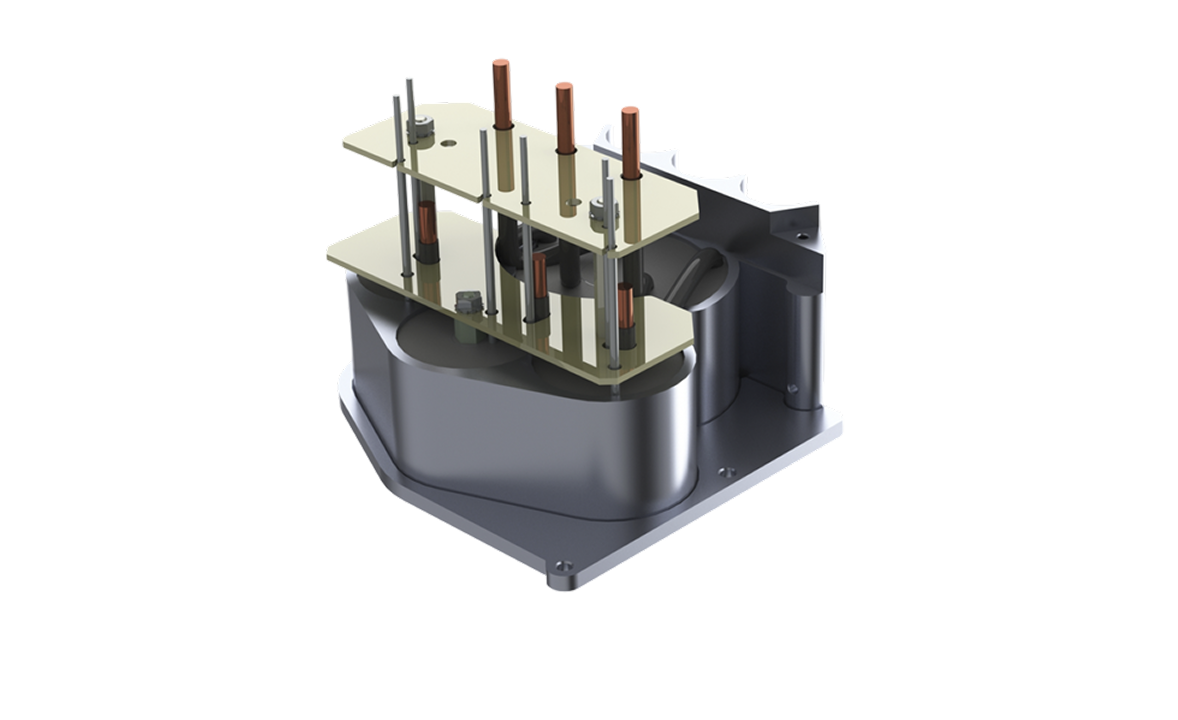

AC Input Filter Assembly

PMAW02

Features

This assembly is a combination of a 800V 70Amp 3 phase Common Mode Choke and 3 Differential Mode Chokes, resulting in a compact assembly for easy integration.
